Part name: DL7

Mold type: transfer mold

Metal parts material: 35 carbon steel

Material thickness: 2mm

Mold size: 2060*780*500mm

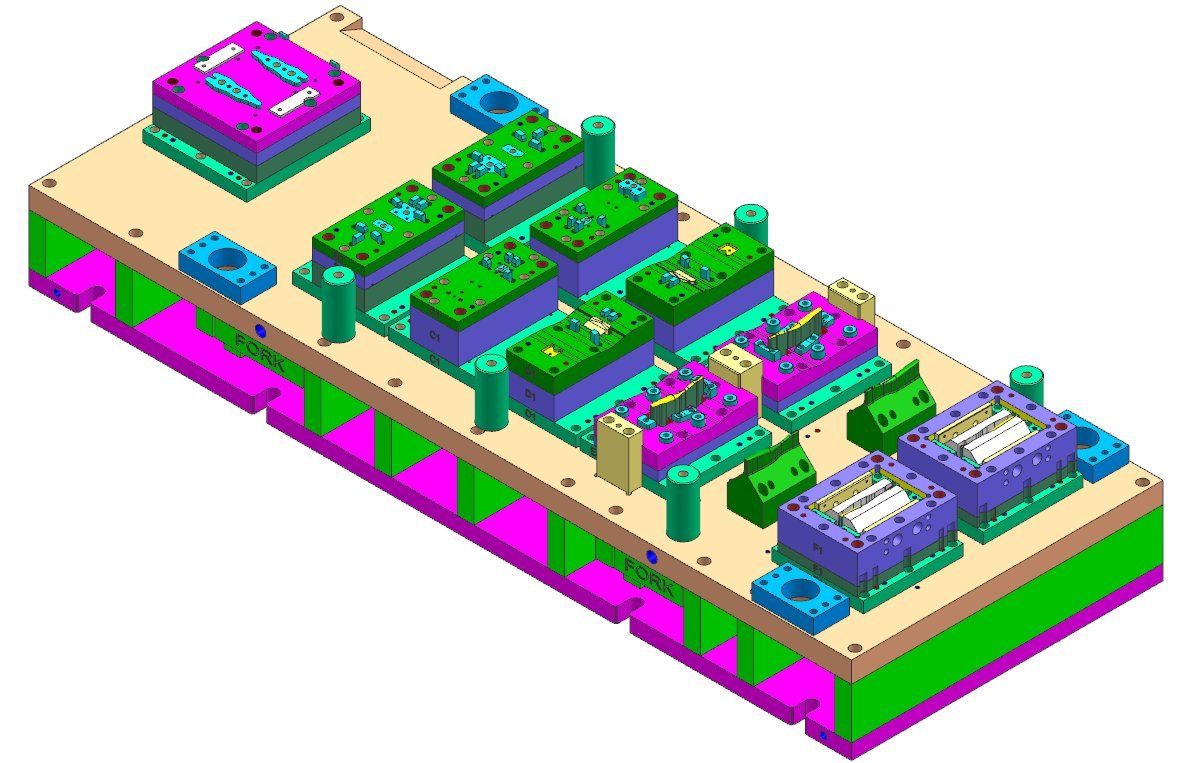

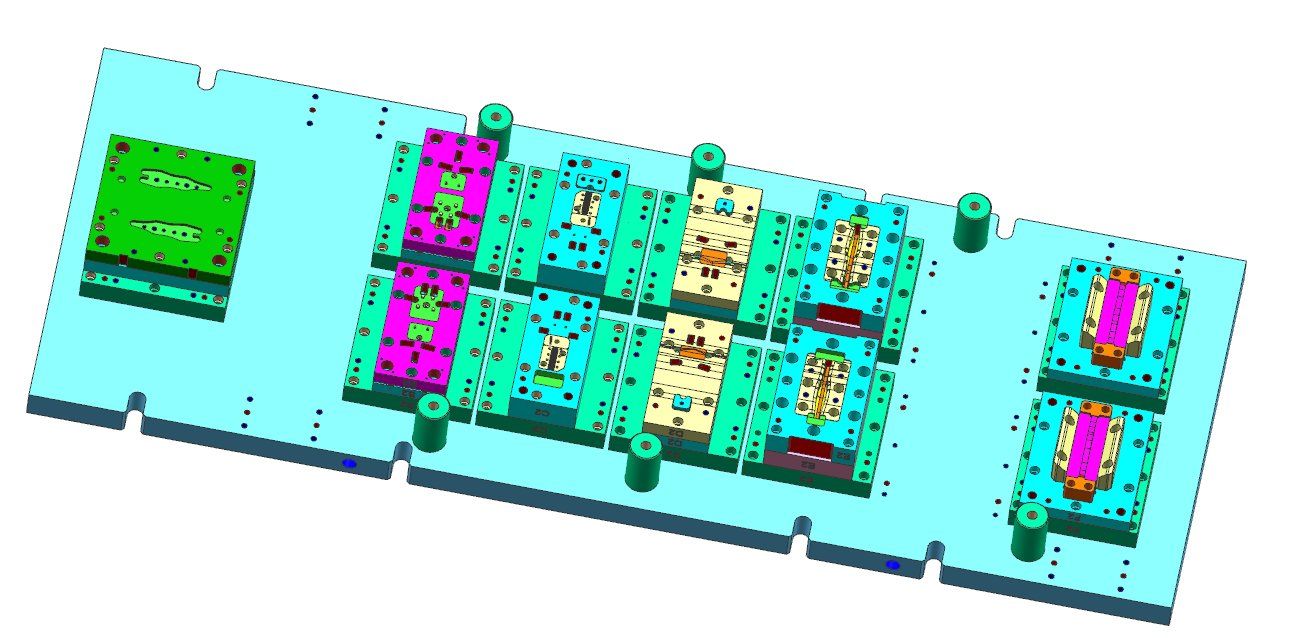

Mould design:

Mold highlights:

1. The mold and the manipulator cooperate, and the blanking, punching, forming and other processes are automatically carried out without manual intervention

2. Multi-process shared mold base reduces mold cost, takes into account the advantages of single process and continuous mold, and realizes continuous production of "single process" mold

3. Eliminate the bending outward, meet the tolerance requirements of the opening angle, and ensure the relative position and size of the assembly holes
