Mold Features:

1. Due to the structure of the slider, because it is a rotating two-color, it is necessary to design an oil cylinder.Ensure that the slider does not move when the mold is opened and rotated to change the cavity.

2. There are many front mold ribs, so it is necessary to increase the front mold hook when designing the mold.Ensure that the product does not stick to the front mold.

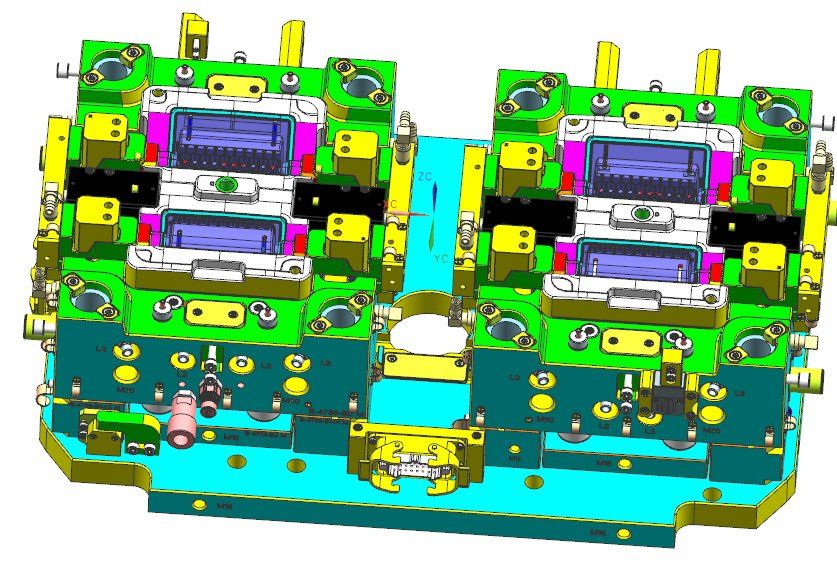

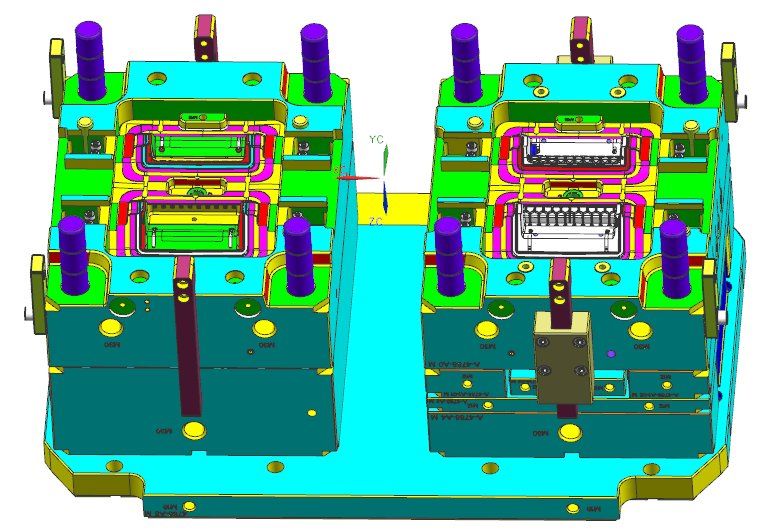

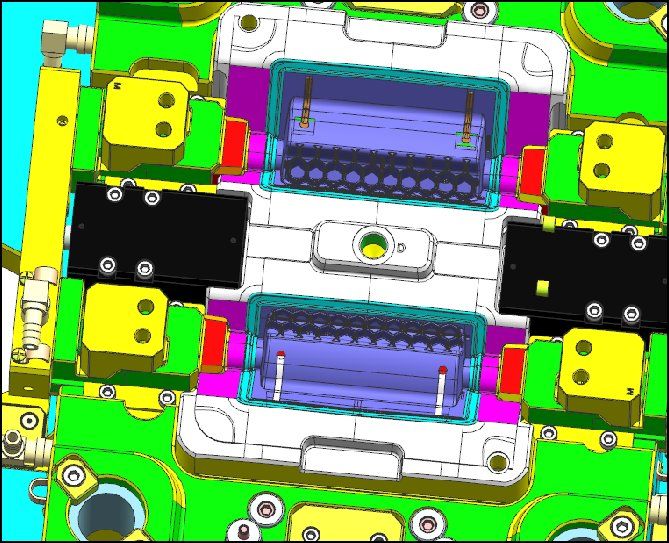

Mold Design:

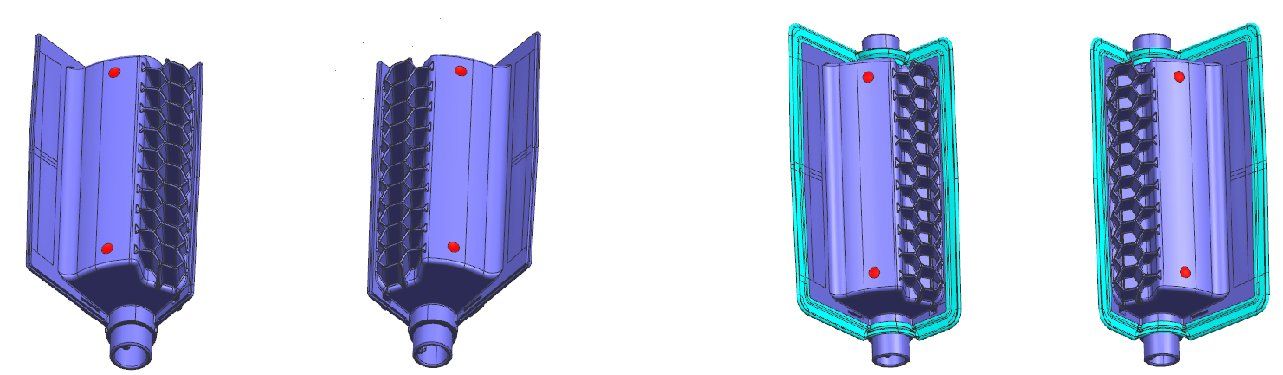

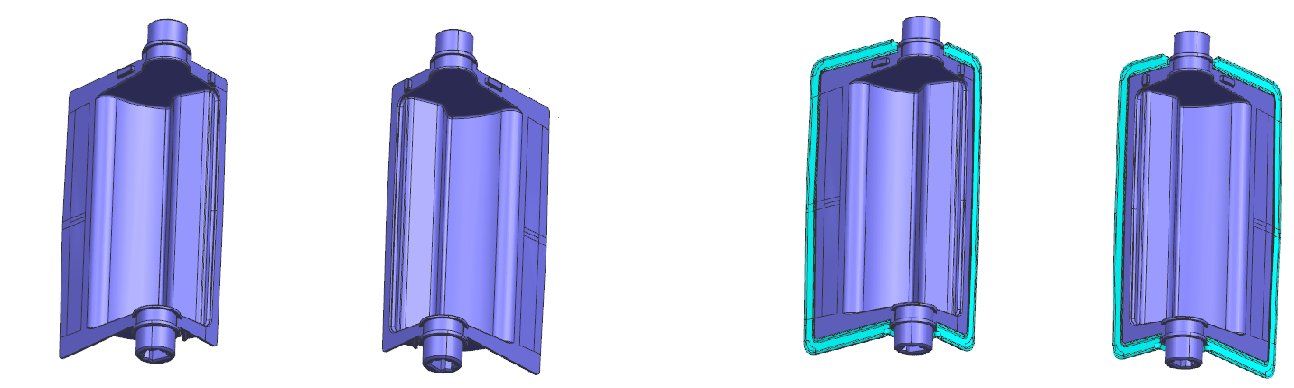

Parts Pictures:
