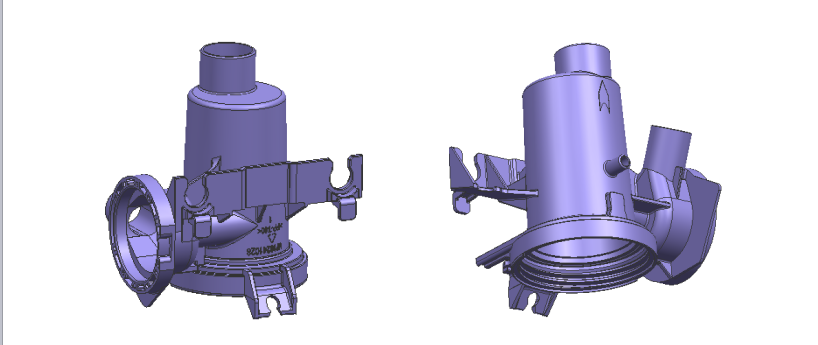

The filter shell is an internal part of the washing machine, and the product has the following features:

1. The product structure is complex, four sliders are required, and the route is longer.

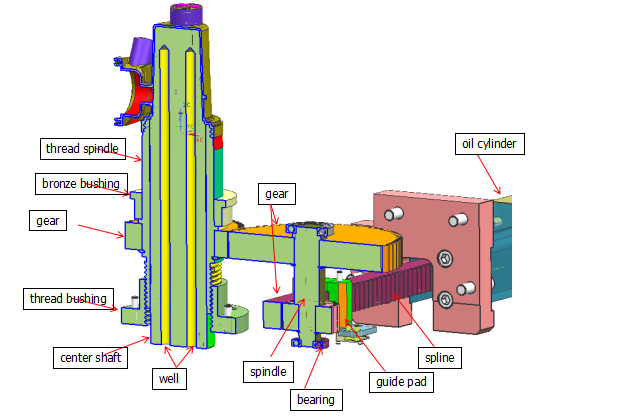

2. There are screw thread at the bottom of the product, and the oil cylinder rack reciprocating threaded mandrel structure is used.

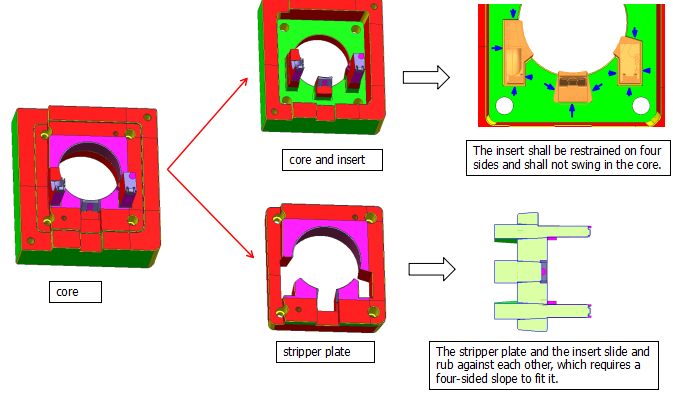

3. The product is ejected with a stripper plate, which needs to avoid inserts and sliders.

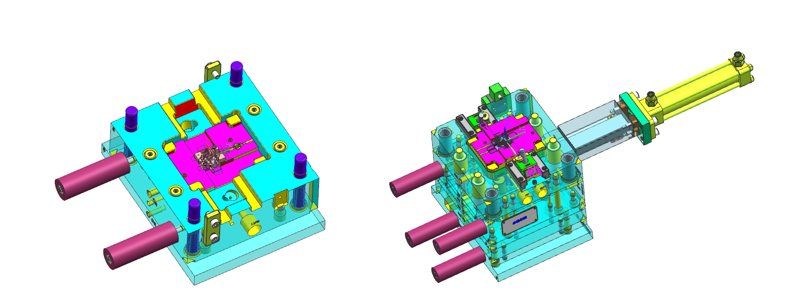

Mould Design:

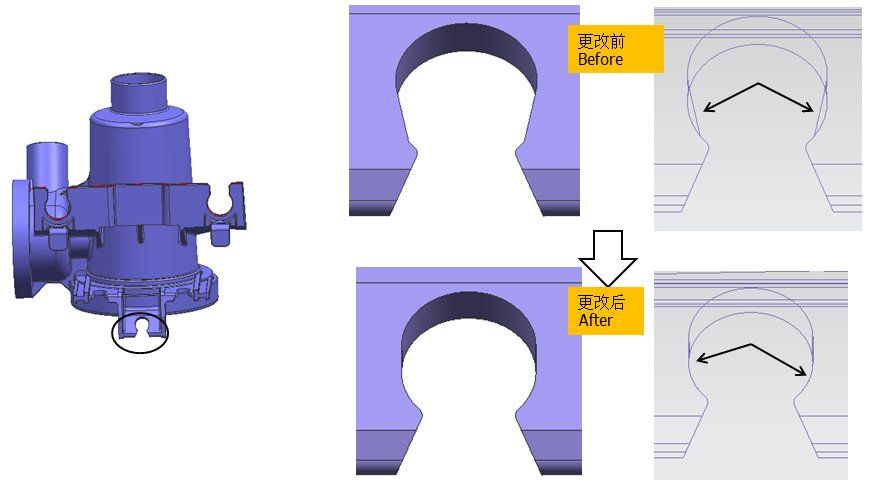

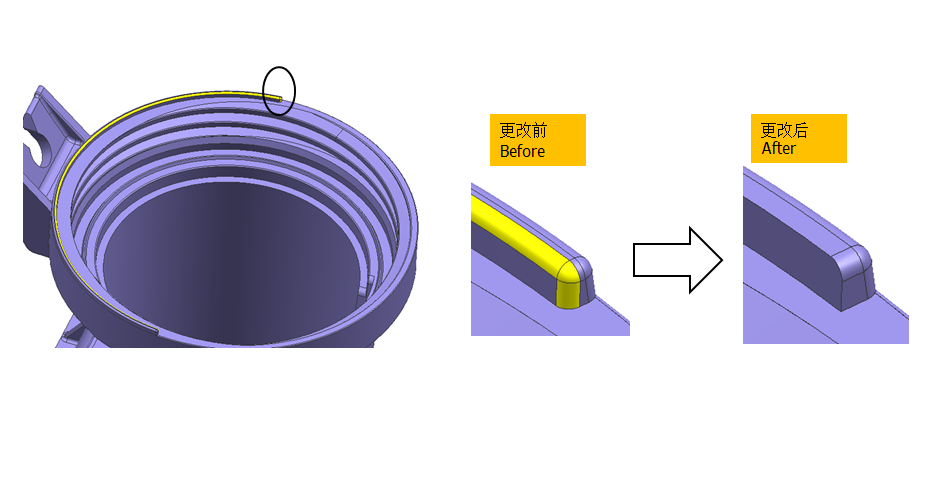

Product Optimization:

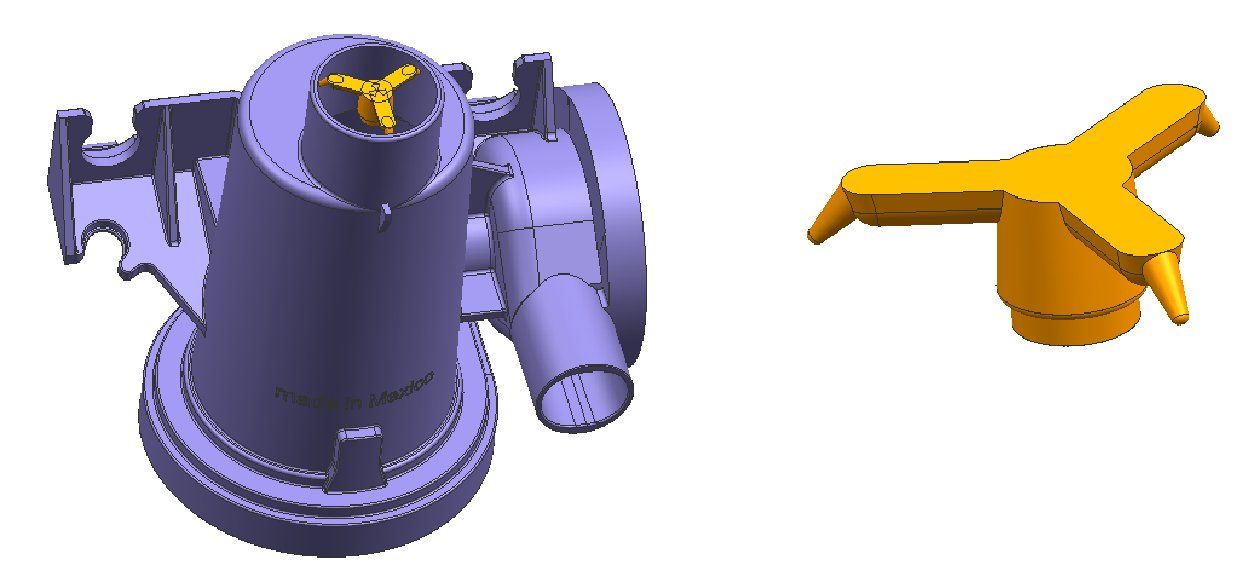

Structure Difficuties:
