Gas Cooker

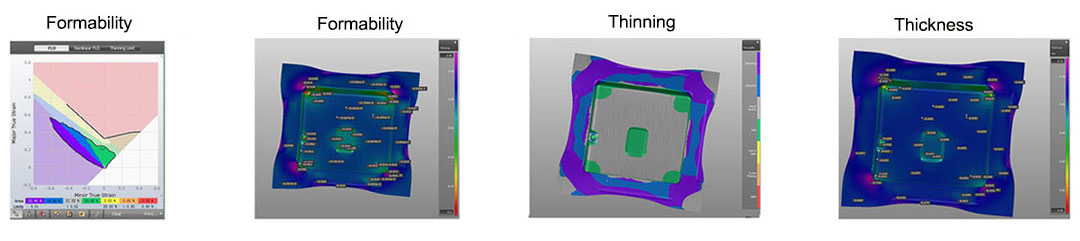

CAE Analysis


0.7 thick pre-painting metal sheet, only 1.5 for the four fillets, to achieve the target of no crack, no wrinkle, neither no scratch.

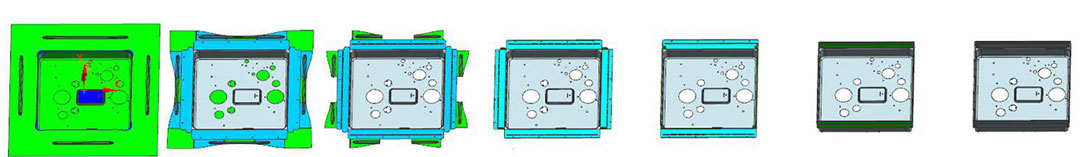

Strip Layout

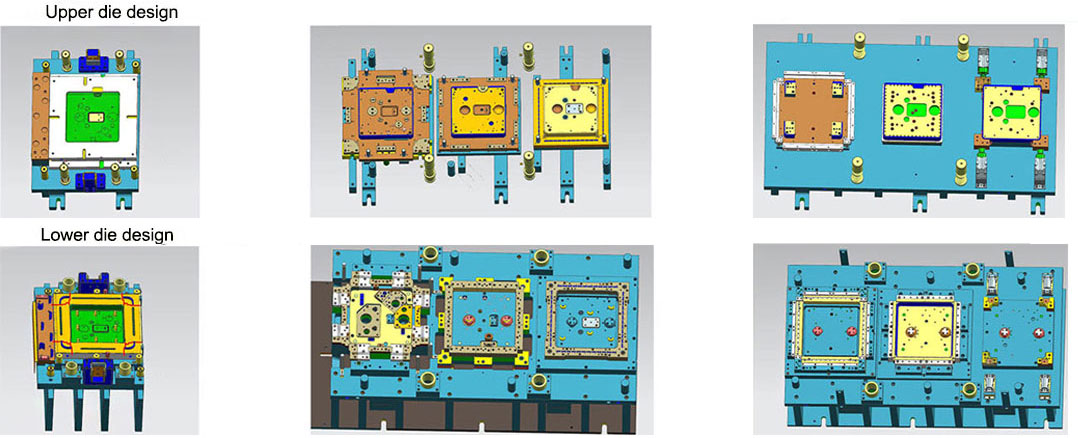

Die Design

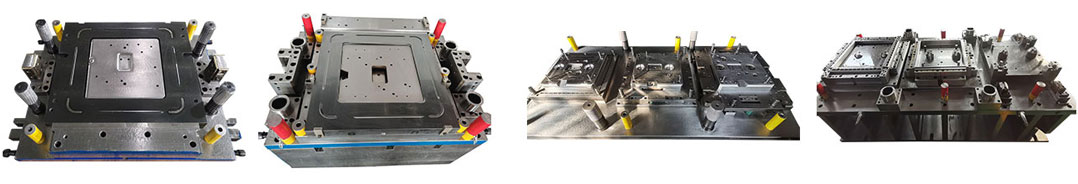

Die Photo


1. It adopts the cooperation of manipulator and feeder, including tox riveting assembly, which can realize full-automatic production without manual operation. The automatic detection device is installed on the die, which can ensure the product quality and realize the safe production of the mould without manual operation. 2. Eliminate the expansion of stretching and bending, ensure the strict tolerance requirements of opening size, and meet the harsh conditions of assembly.

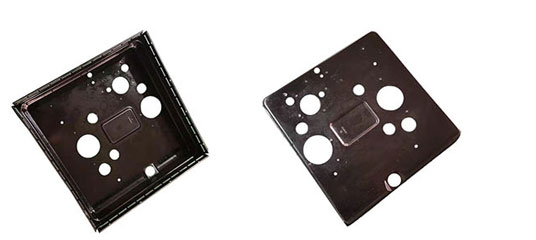

OK Part
