Introduction

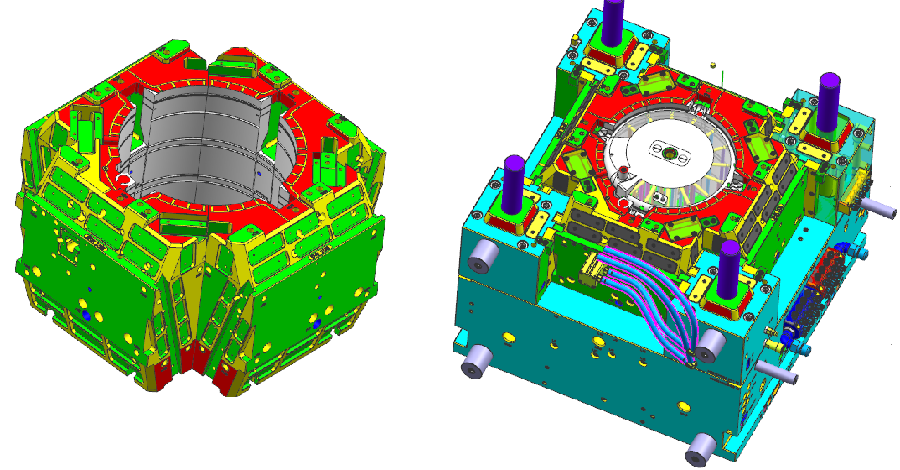

Washing Machine Outer Tub Mould


Ejection method: Haval block + push plate ejection

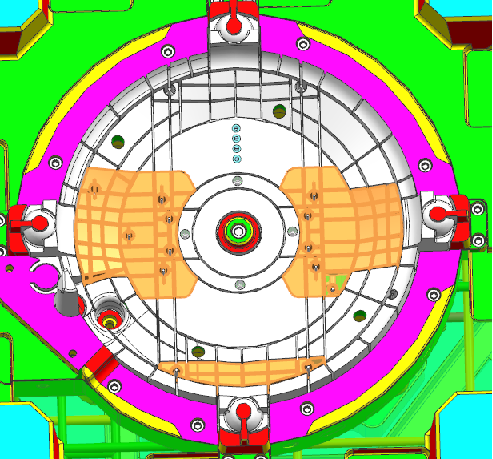

Due to the large number of ribs at the bottom of the product barrel and poor cooling, it needs to be estimated in advance when designing, and the steel material is selected from beryllium copper (to ensure the accuracy of the screw columns fixed by the 8 motors in the middle)



There are two ways of ejecting the mold, one is to eject with two large oil cylinders with Haval block (advantage: smooth action; disadvantage: low efficiency).

The other is the injection molding machine push plate top Haval block, which is mainly cost saving and high production efficiency
