Introduction

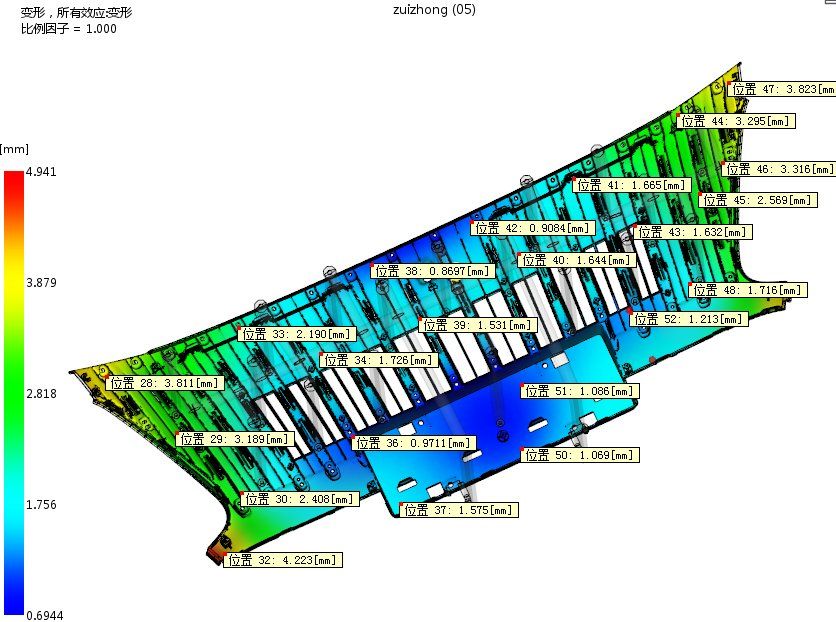

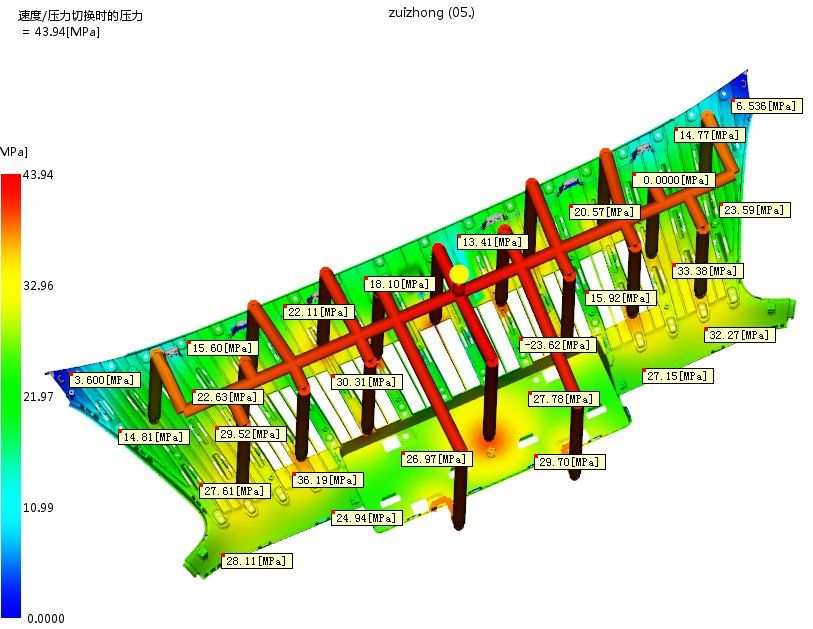

CAE Analysis:

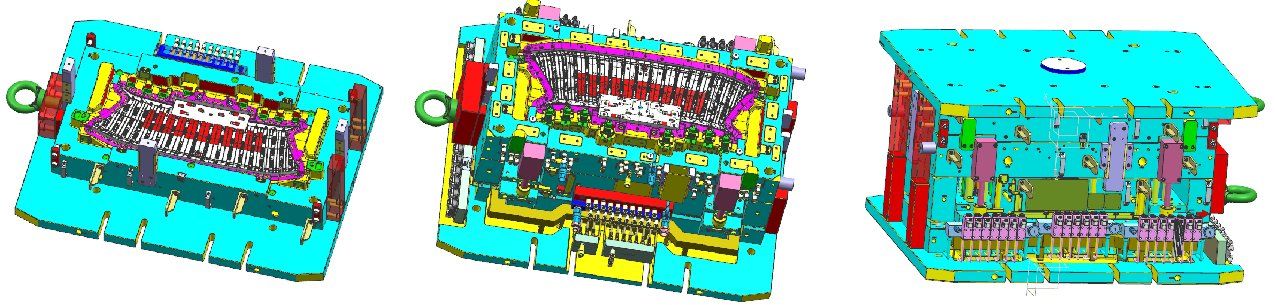

Mold Design:



Technical highlights:

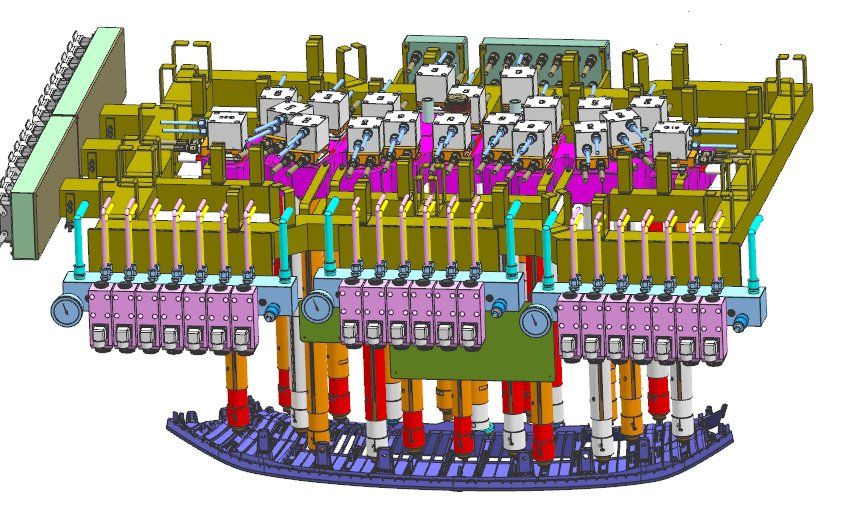

1. The appearance of the product is high-gloss, and the requirements for welding lines are very high. Therefore, the mold is designed with a reverse valve type hot runner, and special attention is paid to the defects of mold flow analysis.

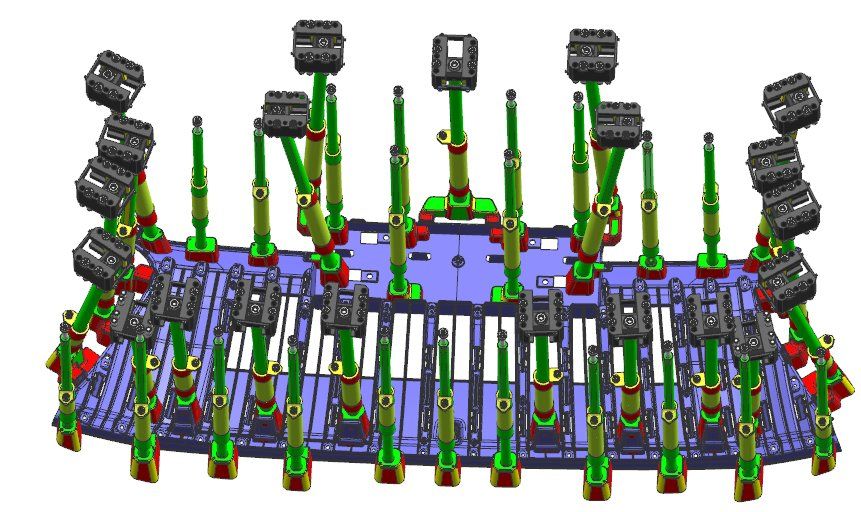

2. The number of lifter ejection + ejection blocks is large, and the problem of ejecting clips needs to be considered, and a secondary ejection structure needs to be added to solve this problem.
